Cube Voyager XCHOICE: The Missing Help Doc

October 22nd, 2013

First note: I sent this to the support people at Citilabs recently, so maybe on the next update they'll include this in the help document, as I think it is sorely missing.  Or maybe I'm just crazy (you kinda have to be crazy to do transportation modeling*) and have my own way of thinking.

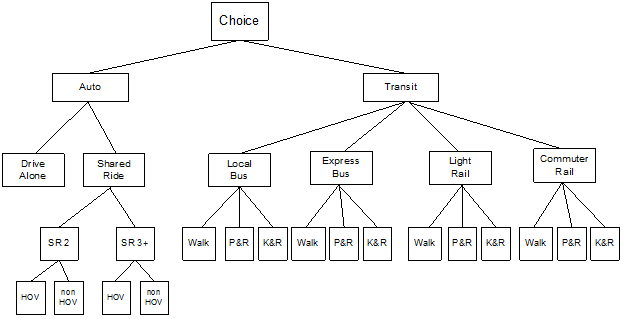

In the OKI model, we have a nested logit mode choice structure that's pretty common for MPOs our size - it's had a history in several other MPOs.  The nesting structure looks like this:



OKI Mode Choice



The part that I think is missing in the Voyager Help File for XCHOICE is this:

XCHOICE ALTERNATIVES=LBW, LBP, LBK, EBW, EBP, EBK, LRW, LRP, LRK, WALK, BIKE, DA, SR2, SR3,
UTILITIESMW=141,142,143,144,145,146,147,148,149,110,111,112,113,114,
DEMANDMW=5,
ODEMANDMW=412,413,414,415,416,417,418,419,420,421,422,405,407,408,
SPLIT=LB 1 LBW 1 LBP 1 LBK,
SPLIT=EB 1 EBW 1 EBP 1 EBK,
SPLIT=LR 1 LRW 1 LRP 1 LRK,
SPLIT=TRAN 0.516 LB 0.516 EB 0.516 LR,
SPLIT=SR 1 SR2 1 SR3,
SPLIT=AUTO 0.516 SR 0.516 DA,
SPLIT=NONM 0.516 WALK 0.516 BIKE,
SPLIT=TOTAL 0.477 AUTO 0.477 TRAN 0.477 NONM,
SPLITCOMP=801,
STARTMW=900

More importantly, WHY this is important:

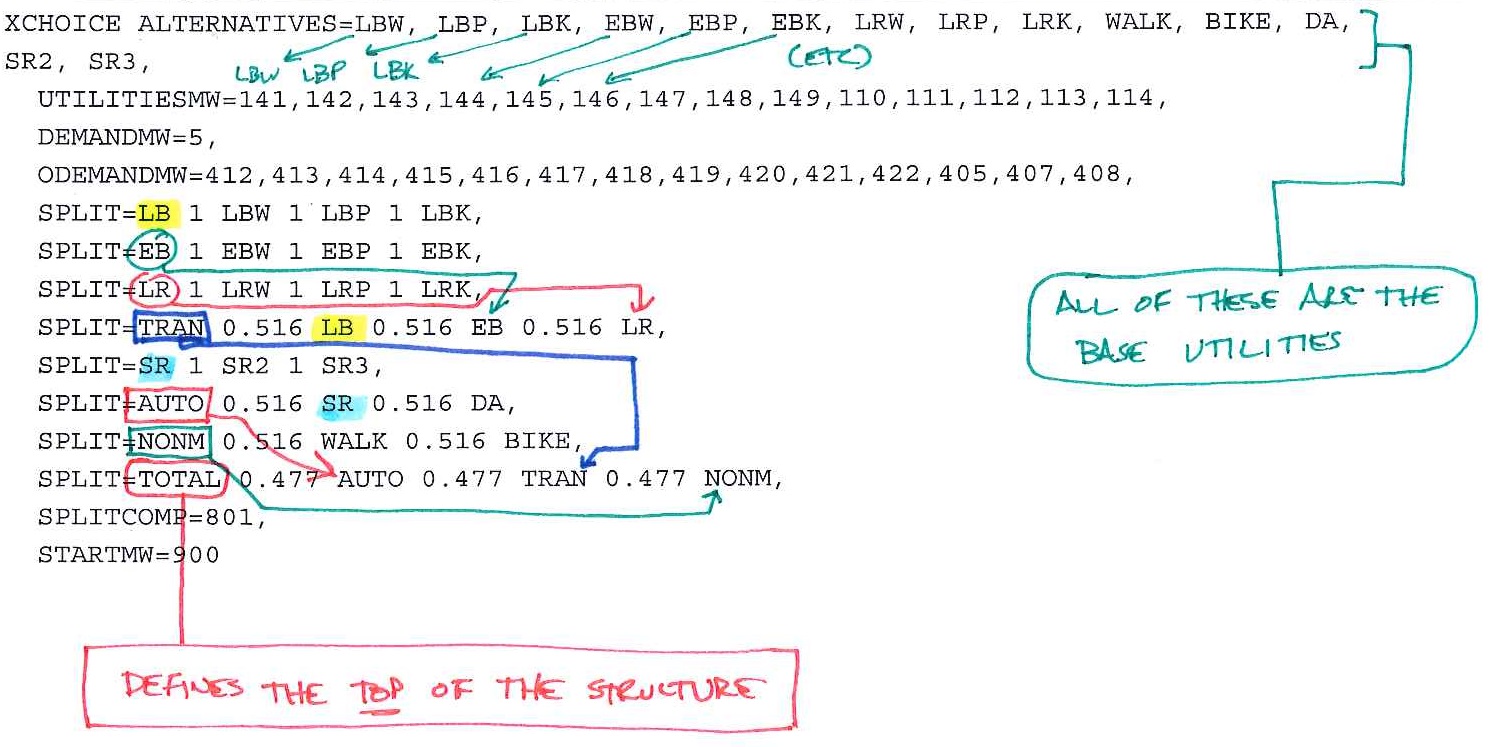

XCHOICE

All those green, blue, red, and yellow marks are pointing things out - like what connects to what and so on.  Once these connections are made, you can get answers without a lot of effort.  It's quite nice, really.  However, I haven't figured out where to put upper-level coefficients, but in my latest estimation runs, those are out.

More Stuff

One of the more important things to get out of the mode choice model is the logsum values that would be used as the impedance for a gravity model distribution.  Once you have the above, it's pretty easy.

First off, make your demand matrix have 100 trips per IJ pair:

MW[2]=100

Then, get the exponential of the SPLITCOMP matrix to get a usable logsum value.

MW[700]=EXP(MW[801])

Note that in the OKI model (and in other models that use walk access markets), this needs to be done multiple times and accumulated to another matrix:

MW[701]=MW[701]+(MW[5]*MW[700])

And then there is some post-processing that needs to be done at the end of the ILOOP:

JLOOP
IF(MW[2]>0)
MW[702]=MW[701]/MW[2] ;Denom
ELSE
MW[702]=0.00000000001
ENDIF

MW[704]=(LN(MW[702])/(COEFF[1]*CLSPRM*CLSSUB))+LOGADD
ENDJLOOP

704 is the output matrix.

--

* I have other forms of craziness, too.  I've recently announced - and made it "Facebook official" to my close friends and family - that I'm going to run a half marathon next spring.

Using a Class Object to Help Read a Control File

December 5th, 2010

One thing we're used to in travel modeling is control files.  It seems to harken back to the days of TranPlan where everything had a control file to control the steps.

In my case, I have a control file for my nested logit mode choice program, and because of the age of the mode choice program, I want to redesign it.  The first part of this is reading the control file, and I did a little trick to help with reading each control file line.  With C++, there is no way to read variables in from a file (like there is with FORTRAN).

The first part of the code reads the control file, and you will see that once I open and read the control file, I section it out (the control file has sections for files ($FILES), operation parameters ($PARAMS), operation options ($OPTIONS), and mode choice parameters ($PARMS). Each section ends with an end tag ($END). This adds the flexibility of being able to re-use variables in different locations.

After the section, the next portion of the code reads the line and checks to see if FPERIN is found. If it is, a ControlFileEntry object is created. This object is a class that is used to return the filename held in the object. This makes it easy to reduce code.

int readControlFile(char *controlFileName){
	cout << "Reading " << controlFileName << endl;
	//Read the control file
	string line;
	bool inFiles=false, inParams=false, inOptions=false, inParms=false;
	ifstream controlFile(controlFileName);
	if(!controlFile.good()){
		cout << "PROBLEMS READING CONTROL FILE" << endl;
		return 1;
	}
	while(controlFile.good()){
		getline(controlFile,line);
		//check the vars sections
		if(line.find("$FILES")!=string::npos)
			inFiles=true;
		if(line.find("$PARAMS")!=string::npos)
			inParams=true;
		if(line.find("$OPTIONS")!=string::npos)
			inOptions=true;
		if(line.find("$PARMS")!=string::npos)
			inParms=true;
		if(line.find("$END")!=string::npos){
			inFiles=false;
			inParams=false;
			inOptions=false;
			inParms=false;
		}
		if(inFiles){
			cout << "Checking files" << endl;
			if(line.find("FPERIN")!=string::npos){
				controlFileEntry cfe(line);
				PerTrpIn=cfe.filename;
			}
//SNIP!!!
	return 0;
}

The controlFileEntry is code is below.  This is used at the top of the code, just below the preprocessor directives (the #include stuff).

class controlFileEntry{
public:
	string filename;
	controlFileEntry(string Entry){
		beg=(int)Entry.find("=")+2;
		end=(int)Entry.rfind("\'")-beg;
		filename=Entry.substr(beg,end);
	}
	~controlFileEntry(){
		beg=0;
		end=0;
		filename="";
	}
private:
	string Entry;
	int beg;
	int end;
};

The class has one public member, filename, which is what is read in the code where it is used. There are two public functions. The first is the constructor (controlFileEntry) which is used when creating the object. The second is the de-constructor (~controlFileEntry), which sets the beg, end, and filename variables to zero and blank.  The beg, end (misnomer), and the line sent to it are private and cannot be used in code.

This can be extended, as the file entry type is fine when there are quotes around the item (it is setup for that, note the -2 in beg).  I wrote a different one for integers, floating point, and boolean values.

class controlParamEntry{
public:
	int ivalue;
	bool bvalue;
	double dvalue;
	controlParamEntry(string Entry){
		beg=(int)Entry.find("=")+1;
		end=(int)Entry.rfind(",")-beg;
		ivalue=0;
		dvalue=0;
		if(Entry.substr(beg,end)=="T"){
			bvalue=true;
			ivalue=1;
			dvalue=1;
		}else if(Entry.substr(beg,end)=="F"){
			bvalue=false;
			ivalue=0;
			dvalue=0;
		}
		if(ivalue==0){
			ivalue=atoi(Entry.substr(beg,end).c_str());
		}
		if(dvalue==0){
			dvalue=atof(Entry.substr(beg,end).c_str());
		}
	}
	~controlParamEntry(){
		beg=0;
		end=0;
		ivalue=0;
		dvalue=0;
		Entry="";
	}
private:
	string Entry;
	int beg;
	int end;
};

As you can see above, there are return values for floating point (dvalue), integer (ivalue), and boolean (bvalue).

Tune in next week to see more of the code.
