Using the Voyager API for Path Analysis

August 3rd, 2012

Just posted on Github: Path2CSV

This is a tool that will read a Cube Voyager Path file and output the contents by node to a CSV file.  The code is written in C++ and available under the GPL3 license.



Using a Class Object to Help Read a Control File

December 5th, 2010

One thing we're used to in travel modeling is control files.  It seems to harken back to the days of TranPlan where everything had a control file to control the steps.

In my case, I have a control file for my nested logit mode choice program, and because of the age of the mode choice program, I want to redesign it.  The first part of this is reading the control file, and I did a little trick to help with reading each control file line.  With C++, there is no way to read variables in from a file (like there is with FORTRAN).

The first part of the code reads the control file, and you will see that once I open and read the control file, I section it out (the control file has sections for files ($FILES), operation parameters ($PARAMS), operation options ($OPTIONS), and mode choice parameters ($PARMS). Each section ends with an end tag ($END). This adds the flexibility of being able to re-use variables in different locations.

After the section, the next portion of the code reads the line and checks to see if FPERIN is found. If it is, a ControlFileEntry object is created. This object is a class that is used to return the filename held in the object. This makes it easy to reduce code.

int readControlFile(char *controlFileName){
	cout << "Reading " << controlFileName << endl;
	//Read the control file
	string line;
	bool inFiles=false, inParams=false, inOptions=false, inParms=false;
	ifstream controlFile(controlFileName);
	if(!controlFile.good()){
		cout << "PROBLEMS READING CONTROL FILE" << endl;
		return 1;
	}
	while(controlFile.good()){
		getline(controlFile,line);
		//check the vars sections
		if(line.find("$FILES")!=string::npos)
			inFiles=true;
		if(line.find("$PARAMS")!=string::npos)
			inParams=true;
		if(line.find("$OPTIONS")!=string::npos)
			inOptions=true;
		if(line.find("$PARMS")!=string::npos)
			inParms=true;
		if(line.find("$END")!=string::npos){
			inFiles=false;
			inParams=false;
			inOptions=false;
			inParms=false;
		}
		if(inFiles){
			cout << "Checking files" << endl;
			if(line.find("FPERIN")!=string::npos){
				controlFileEntry cfe(line);
				PerTrpIn=cfe.filename;
			}
//SNIP!!!
	return 0;
}

The controlFileEntry is code is below.  This is used at the top of the code, just below the preprocessor directives (the #include stuff).

class controlFileEntry{
public:
	string filename;
	controlFileEntry(string Entry){
		beg=(int)Entry.find("=")+2;
		end=(int)Entry.rfind("\'")-beg;
		filename=Entry.substr(beg,end);
	}
	~controlFileEntry(){
		beg=0;
		end=0;
		filename="";
	}
private:
	string Entry;
	int beg;
	int end;
};

The class has one public member, filename, which is what is read in the code where it is used. There are two public functions. The first is the constructor (controlFileEntry) which is used when creating the object. The second is the de-constructor (~controlFileEntry), which sets the beg, end, and filename variables to zero and blank.  The beg, end (misnomer), and the line sent to it are private and cannot be used in code.

This can be extended, as the file entry type is fine when there are quotes around the item (it is setup for that, note the -2 in beg).  I wrote a different one for integers, floating point, and boolean values.

class controlParamEntry{
public:
	int ivalue;
	bool bvalue;
	double dvalue;
	controlParamEntry(string Entry){
		beg=(int)Entry.find("=")+1;
		end=(int)Entry.rfind(",")-beg;
		ivalue=0;
		dvalue=0;
		if(Entry.substr(beg,end)=="T"){
			bvalue=true;
			ivalue=1;
			dvalue=1;
		}else if(Entry.substr(beg,end)=="F"){
			bvalue=false;
			ivalue=0;
			dvalue=0;
		}
		if(ivalue==0){
			ivalue=atoi(Entry.substr(beg,end).c_str());
		}
		if(dvalue==0){
			dvalue=atof(Entry.substr(beg,end).c_str());
		}
	}
	~controlParamEntry(){
		beg=0;
		end=0;
		ivalue=0;
		dvalue=0;
		Entry="";
	}
private:
	string Entry;
	int beg;
	int end;
};

As you can see above, there are return values for floating point (dvalue), integer (ivalue), and boolean (bvalue).

Tune in next week to see more of the code.

Reading a Matrix File in C++ and Doing Something With It

November 28th, 2010

Last week's post showed how to open a path file using C++. This week's post will show how to open a Cube Voyager matrix file in C++.

Setup

Like last week, we need to reference VoyagerFileAccess.lib in the project.  We also need to add the external references in the header file as below:

extern "C" __declspec(dllimport)void* MatReaderOpen(const char *filename, char *errMsg, int errBufLen);
extern "C" __declspec(dllimport)int MatReaderGetNumMats(void* state);
extern "C" __declspec(dllimport)int MatReaderGetNumZones(void* state);
extern "C" __declspec(dllimport)int MatReaderGetMatrixNames(void* state, char **names);
extern "C" __declspec(dllimport)int MatReaderGetRow(void* state, const int mat, const int row, double *buffer);
extern "C" __declspec(dllimport)void MatReaderClose(void* state);

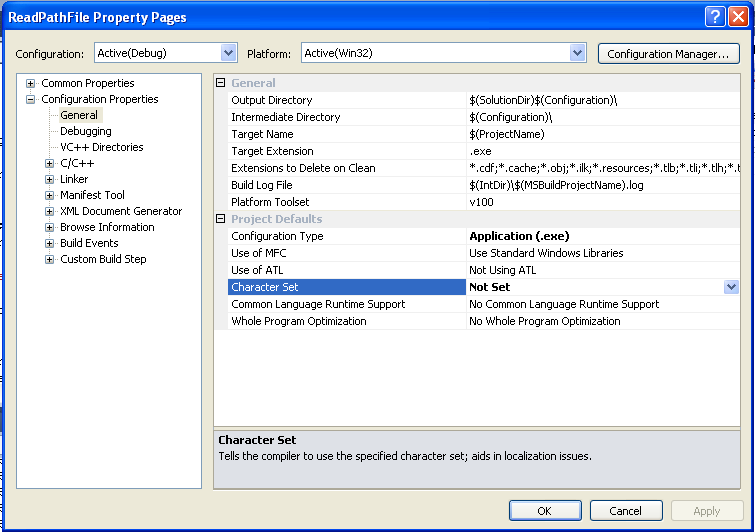

Also ensure that the project is setup with the character set of "Not Set" as opposed to Unicode, which seems to be a default in MS Visual C++ Express Edition.

Main Application

The main application is fairly simple and just opens the matrix and outputs the number of tables and zones to the screen.

#include "stdafx.h"
#include <stdio.h>
#include <iostream.h>

using namespace std;

int _tmain(int argc, _TCHAR* argv[])
{
	char errMsg[256]="";
	// Open the matrix
	void* matrixState=MatReaderOpen(argv[1],errMsg,256);
	// Get number of tables in the matrix
	int nMats = MatReaderGetNumMats(matrixState);
	// Get number of zones in the matrix
	int nZones = MatReaderGetNumZones(matrixState);
	// Output to screen
	cout << "File " << argv[1] << endl;
	cout << "Number of Tables....." << nMats << endl;
	cout << "Number of Zones......" << nZones << endl;
	// Close the matrix
	MatReaderClose(matrixState);
	cout << "Matrix Closed." << endl;
	cout << "Press any key to close" << endl; 	char tmp; 	cin >> tmp;
	return 0;
}

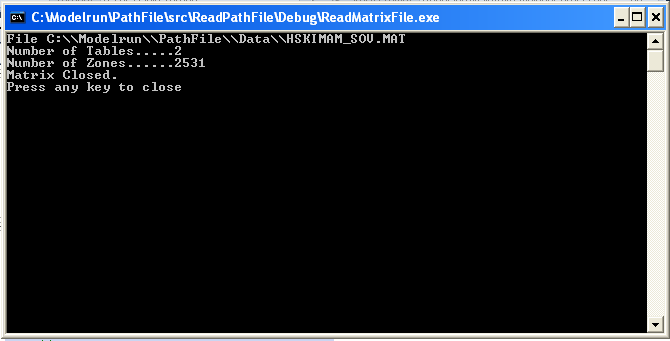

The output looks like the below:

Using the Path Files in the New Cube Voyager API

November 23rd, 2010

Matthew M., The Citilabs Director of Development, released an API to use C/C++ to read Voyager Matrixes and Highway Path Files.  I have started into using this API in C++ to read path files.

The first thing with the path files is that it is (as indicated in the documentation) Highway Path Files only.  I first tried PT Route Files (which can be read in Viper in the same way one could use Highway Path files), but alas, you receive an error when trying to do that.

For this, I have created a console application, which could become something to run in a model run.

Setup

The first thing is to setup your include file with the DLL references.

Start by adding a reference to VoyagerFileAccess.lib.  In Visual C++ Express 2010, right-click on your solution name and add an existing item (and point it to VoyagerFileAccess.lib).  Then, in a header file (or in your source file, but normal programming conventions seem to dictate that these items belong in headers), add the following lines:

extern "C" __declspec(dllimport)void* PathReaderOpen(const char *filename, char *errMsg, int errBufLen);
extern "C" __declspec(dllimport)void* PathReaderClose(void* state);
extern "C" __declspec(dllimport)int PathReaderGetNumZones(void* state);
extern "C" __declspec(dllimport)int PathReaderGetNumTables(void* state);

These lines tell the compiler that these four functions are imported through a DLL (and thus, it uses the lib file to know where to go).

The next thing, since this is a console application, is to correct the Character Set.  Right-click on the solution, go to properties, select Configuration Properties - General, and set the Character Set to "Not Set".  If you leave it on Unicode, your command line arguments will have only one letter.  See the screen capture below.

Main Application

This is a small application that just shows some simple reading the zones and tables in the path file.  The application takes one command-line argument.

The source, fully commented, is below.

#include "stdafx.h"

#include <Windows.h>

#include <stdio.h>

#include <iostream>

using namespace std;

int _tmain(int argc, char* argv[])

{

// dim variables
char errorMessage[256]="";
int Zones,Tables;

// Opens the path file and sets the Zones and Tables variables
void* state=PathReaderOpen(argv[1],errorMessage,256);
Zones=PathReaderGetNumZones(state);
Tables=PathReaderGetNumTables(state);

// Dumps the variables to the screen
cout << "State of PathReaderOpen: " << state << endl;
cout << "PathReaderErrorMessage: " << errorMessage << endl;
cout << "Zones: " << Zones << endl;
cout << "Tables: " << Tables << endl;

// Closes the path file
PathReaderClose(state);
cout << "Path Reader Closed";

// This makes the command window wait for input from the user before closing
char tmp;
cin >> tmp;

return 0;
}

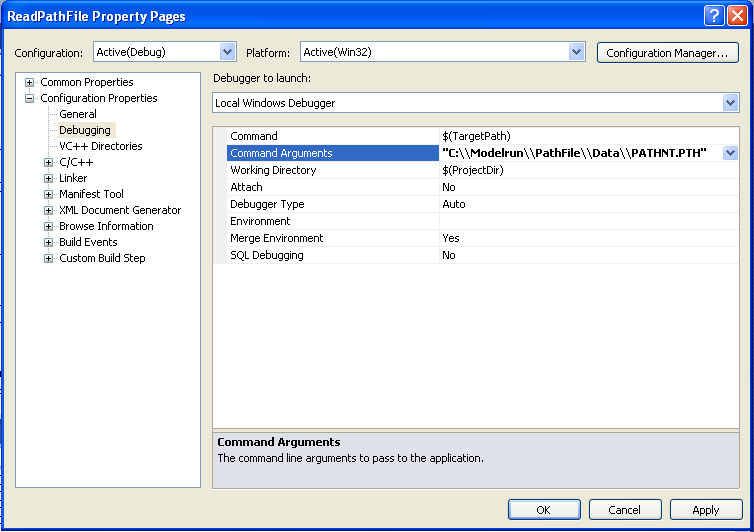

For debugging, you will want to set the command-line argument.  This is done by right-clicking on the solution and going to Configuration - Debugging.  See the screen capture below.

Output

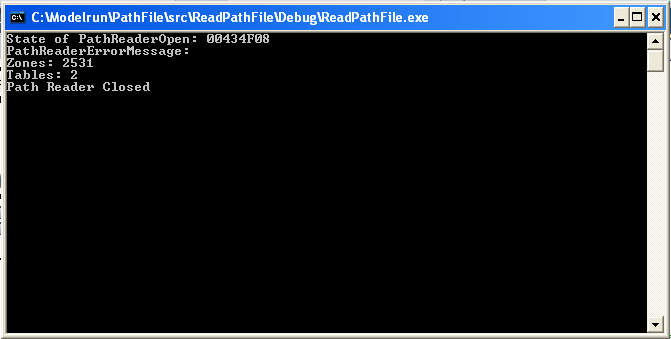

The output of this is fairly simple:

In the coming weeks, I will post more about using this new API.

Voyager + C++ With Multi-Dimensional Arrays (Part 2: Writing)

November 7th, 2010

This is part 2 of using Cube Voyager Multi-Dimensional Arrays with C++. To see part 1, click here.

Building on last weeks post, the below shows the modifications necessary in Cube. The first thing I added is the variable itself (else, you will get one of those inexplicable errors). In this case, I add MDARRAY2 as a variable that is the same dimensions as MDARRAY. The second part that I add (which is after the CALL statement) is just to report the values stored in MDARRAY2.

RUN PGM=MATRIX PRNFILE="C:\TEMP\DTMAT00B.PRN"
FILEO PRINTO[1] = "C:\TEMP\DEBUG.PRN"

PAR ZONES=1

ARRAY MDARRAY=5,5, MDARRAY2=5,5

LOOP _c=1,5
  LOOP _r=1,5
    MDARRAY[_c][_r]=RAND()
    PRINT PRINTO=1 LIST='MDARRAY[',_c(1.0),'][',_r(1.0),']=',MDARRAY[_c][_r](8.6)
  ENDLOOP
ENDLOOP

CALL DLL=DLLFILE(TableReader)

LOOP _c=1,5
  LOOP _r=1,5
    PRINT PRINTO=1 LIST='MDARRAY2[',_c(1.0),'][',_r(1.0),']=',MDARRAY2[_c][_r](8.6)
  ENDLOOP
ENDLOOP
ENDRUN

In C++, I add a second variable for MDARRAY2 (called TableRecord2). It is critical that this is a double* variable, as this needs to be a pointer so Cube can access updated values of the variable. Similar with how I read MDARRAY into TableRecord, I do the same with MDARRAY2 and TableRecord2, which reads the pointers to MDARRAY2 into TableRecord2. Then, as I iterate through TableRecord, I set TableRecord2 to 10 * TableRecord. After this, the DLL is complete and Cube ultimately prints all the values to the print output.

int TableReader (Callstack* Stack){
	double* TableRecord;
	double* TableRecord2;
	char message[100];

	TableRecord=(double*)Stack->pfFindVar("MDARRAY",0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,
                16,17,18,19,20,21,22,23,24);
	TableRecord2=(double*)Stack->pfFindVar("MDARRAY2",0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,
                16,17,18,19,20,21,22,23,24);
	for(int x=0;x<=24;x++){ 	if(&TableRecord!=0){ 			 		sprintf(message,"TableRecord=%f",TableRecord[x]); 		Stack->pfPrnLine(1,message);
		TableRecord2[x]=TableRecord[x]*10;
		}
	}
	return 0;
}

Additional Considerations

If you decide to use this, you may want to pass the sizes of each dimension if it is important. Then, you can write a function to take the sequential value and return the column or row.

Voyager + C++ With Multi-Dimensional Arrays (Part 1: Reading)

October 31st, 2010

This is part 1 of this subject. Part 2 will be about writing values to the arrays.

One of the cool things with the latest version of Cube Voyager is multi-dimensional arrays. However, it appears behind the scenes (or at least to C++) that the multi-dimensional arrays are a wrapper over a single-dimension array.

The easiest way to show this is to make a random array and send it to the print file. Making the random array in Cube is simple:

RUN PGM=MATRIX PRNFILE="C:\TEMP\DTMAT00B.PRN"
FILEO PRINTO[1] = "C:\TEMP\DEBUG.PRN"

PAR ZONES=1

ARRAY MDARRAY=5,5

LOOP _c=1,5
  LOOP _r=1,5
    MDARRAY[_c][_r]=RAND()
    PRINT PRINTO=1 LIST='MDARRAY[',_c(1.0),'][',_r(1.0),']=',MDARRAY[_c][_r](8.6)
  ENDLOOP
ENDLOOP

CALL DLL=DLLFILE(TableReader)
ENDRUN

Then, in C++ we can pull 25 (!) array values from this:

int TableReader (Callstack* Stack){
	double* TableRecord;
	char message[100];

	TableRecord=(double*)Stack->pfFindVar("MDARRAY",0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,
             16,17,18,19,20,21,22,23,24);
	for(int x=0;x<=24;x++){
	if(&TableRecord!=0){
		sprintf(message,"TableRecord=%f",TableRecord[x]);
		Stack->pfPrnLine(1,message);
		}
	}
	return 0;
}

For fixed size multi-dimensional arrays, this isn't really an issue. It would be very easy to wrap the Stack->pfFindVar line in a set of loops that fills a multi-dimensional array.

Voyager + C++ With DBI Part 1: Number Fields

October 17th, 2010

This is part 1 of this subject.  Part 2, using C++ with DBI String Fields, will be in a few weeks, once I figure it out!

Extending the posts relating to using C++ with Cube Voyager, the next thing to look at is using C++ with the DBI input module that was added in Cube 5.1.

The key to making this happen is the Matrix FILEI help section that discusses that certain things are held in arrays. My last post on this subject got into arrays a little, but there are a few new tricks to use.

The code below (C++) is some simple source code that reads the input database (DBI.1) and reads the built-in array of field values.

typedef struct { int I,J,Zones,Iterations;
				double** MW;
				void* (*pfFindVar)(char*,...);
				void* (*pfPrnLine)(int,char*);
} Callstack;

int TableReader (Callstack* Stack){

	double* TableRecord;
	char message[100];

	TableRecord=(double*)Stack->pfFindVar("DBI.1.NFIELD",1,2,3,4,5,6,7,8,9,10,
		11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,
		31,32,33,34,35,36,37,38,39,40);

	for(int x=0;x<=40;x++){ 		if(&TableRecord[x]!=0){ 			sprintf(message,"Table %i=%f",x,TableRecord[x]); 			Stack->pfPrnLine(1,message);
		}
	}

	return 0;
}

This reads all the NUMERIC (note the emphasis!) fields and dumps them to the print file. There is a trick in here - I have a table with 39 fields, but I pull 40 fields. If you actually use that 40th field in the sprintf statement, it crashes. This is why I test to ensure that &TableRecord[x] (the pointer to the table record) does not equal 0.

Normally in Cube, one would read the database fields using DI.1.FIELDNAME. This is certainly possible in C++. Note the code below (where HHPERSONID is the field name):

int TableReader2 (Callstack* Stack){
	double HHPersonId;
	char message[100];

	HHPersonId=*(double*)Stack->pfFindVar("DI.1.HHPERSONID");
	sprintf(message,"%f",HHPersonId);
	Stack->pfPrnLine(1,message);

	return 0;
}

This is similar to the code example above.

Tune in next week when I get into more DBI with C++.

Using a C++ DLL in Cube

October 10th, 2010

One thing that can drastically speed Cube is using a DLL to do big tasks, like Nested Logit Mode Choice. However, doing this can be fraught with hair-pulling errors.  This post shows some techniques to keep your hair on your head.  This post is written for a travel demand modeler, not a computer science person!

RTFM (Read The Fine Manual)

Read the help file for Matrix CALL statement.  The struct statement is pretty important, and the sprintf lines will be used throughout.

Memory Pointers

One of the most important things to understand is that because there are so many variables that can be passed between Cube and the C++ DLL, the memory pointers are passed instead.  Also, one of those "pull your hair out" things relates to this - if you attempt to access a memory pointer that hasn't been initialized, you get a crash that gives no error.

Because of this, the variables in the struct statement have a *, which notes that it is a memory pointer.

To keep from getting the crash-with-no-error, the following statement works well to test and allows a default to be used if the variable 'MarketSegments' is not set in Cube.

int MarketSegments=4;

if(Stack->pfFindVar("MarketSegments")!=0)
MarketSegments=(int)*Stack->pfFindVar("MarketSegments");

Matrix In, Matrix Out

While the Help file says that you can get to defined working matrixes using

static double **MW;
MW=(*Stack->pfFindVar)("MW",1);

I can't get it to work using C++ (I have gotten it to work in C).  Instead, use the following:

static double **MW=NULL;
MW=Stack->MW;

This will enable you to use MW[m][j] (where m is the MW number, and j is the j-zone).

You can also set the MW variables, but it does NOTHING if you don't set the MW to something in Cube Voyager.  Ergo, if you set

MW[101][j]=10;

Your output will be 0 unless you do the following in Cube Voyager

MW[101]=0
CALL...

Array Variables

One of the tricks I use to get array variables out of Cube is this

float ArrayVariable[7]={0,0,0,0,0,0,0};  //Note: I'm using 1-6.  Setting this to 7 means 0-6.  Setting it to 6 would mean 0-5
if(Stack->pfFindVar("ArrayVariable")>0){
double* tmpAV=NULL;
tmpAV=Stack->pfFindVar("ArrayVariable",1,2,3,4,5,6);
for(int x=1;x<=6;x++)
ArrayVariable[x]=tmpAV[x];
}

This code above checks that the ArrayVariable, fills them into a temporary variable, and then sets the actual variable.

Compilation Linker Settings

When compiling, you need to set the EXPORT flag so the name is predictable and correct.  To do this, go to your project's property pages - Configuration Properties - Linker - Command Line.  You need to add "/EXPORT:FunctionName" under Additional Options.  See the screenshot below

.

Other Weird Stuff

Any error in C++ that does not cause a compilation error results in one of those useless "this program has an error and will be closed" and crashes Task Monitor.  That being said, write messages to the output file frequently (if at least during debugging).  This can assist with finding typos (like, say, %10.65f in an sprintf statement, which means 65 decimal places in a 10-width line).
